FEATURES:
- Bottom mount compressor units with environmentally friendly R290 refrigerant
- Stainless steel exterior & interior
- Electronic Temperature Controller
- Maintains temperatures between -8°F – 0°F
- LED interior light(s)
- Recessed door handle(s)
- Door lock(s) standard
- Magnetic door gasket(s) standard for positive door seal
- Pre-installed casters
- Three (3) pre-installed shelves per section
- Down duct refrigeration to ensure even distribution of air
- Extra shelves – includes 4 shelf clips per shelf
- MBF8520GR shelf part #: W0402316
- MBF8531GR shelf part #: W0402315
- MBF8501GR/GRL shelf part #: W0402393
- MBF8503GR shelf part #: W0402387
- MBF8504GR shelf part #: W0402387 left/right shelf, part #: W0402388 middle shelf
| SPECIFICATIONS | |
|---|---|

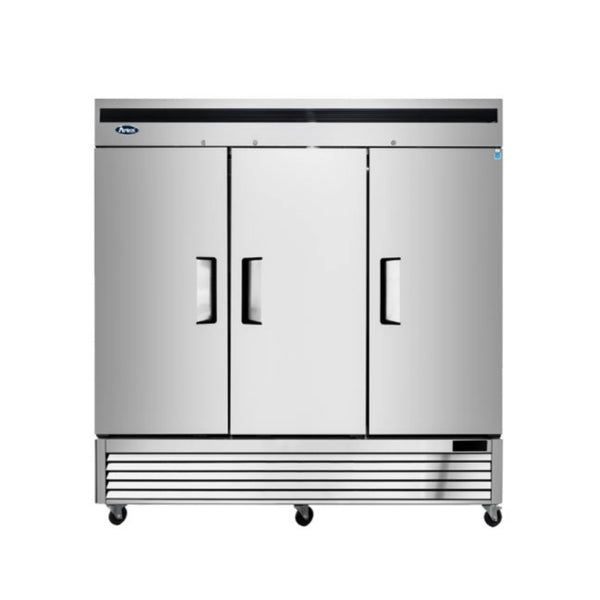

| Model | MBF8504GR |
| Door | 3 |
| Capacity (Cu. Ft.) | 68 |
| Shelves | 9 |
| Casters (inch) | 4 |
| Rated Current (A) | 6.2 |
| Voltage (V/Hz/Ph) | 208-230/115/60/1 |
| HP | 1 |
| Refrigerant | R290 |
| Plug | NEMA-L14-20R |
| Exterior Dimensions (inch) | 81 9/10"L x 31 7/10"D x 83 1/10"H |
| Net Weight (lb) | 551 |
| Gross Weight (lb) | 628 |
