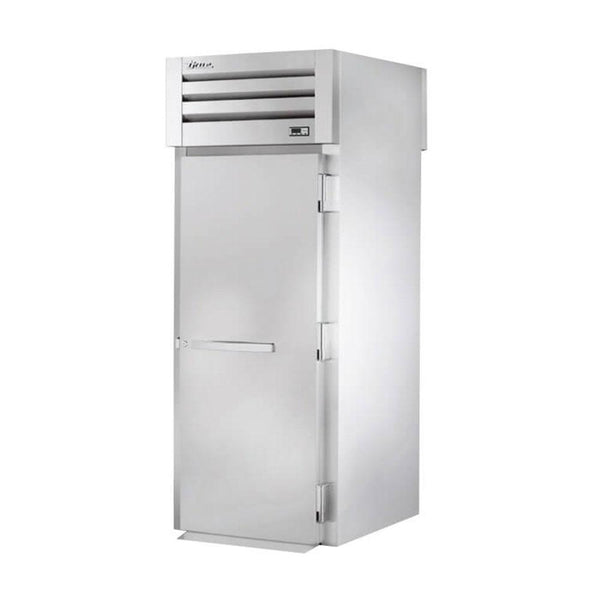

This True STG1HRT-1S-1S 35" Roll-In Solid Swing Door Heating and Holding Cabinet is designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C). Heating system controlled by exterior on/off switch and electronic temperature control.
Two (2) stainless steel (for corrosion resistance), finned tube heating elements (1000 watts each) for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.
Features:
- Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
- Manually controlled vent located on top of the cabinet for positive humidity control.
- Stainless steel breaker caps.
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- One (1) heavy gauge stainless steel ramp.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
- Incandescent interior lighting; lights activated by exterior on/off switch, safety shielded.
- Exterior, color coded, temperature display; accurate direct reading of internal cabinet temperature.
- Designed to hold warm baked or cooked food. Cabinet is not designed to heat ambient or cold product.
- Interior bumpers protect cabinet walls from abuse caused by rollin carts.
| Specifications | |
|---|---|
| Model | STG1HRT-1S-1S |
| Width | 35 Inches |
| Depth | 37 Inches |
| Height | 83.75 Inches |
| Voltage | 115 / 208 - 230 Volts |
| Hertz | 60 Hertz |
| Phase | 1 |
| Wattage | 2000 Watts |
| Features | Pass-Thru |
| Number of Doors | 2 |
| Number of Sections | 1 |
| Door Type | Solid |
| NEMA | 14-20P |
| Door Style | Swing Door |
| Exterior Material | Stainless Steel with Aluminum |
| Interior Material | Aluminum and Stainless Steel |
| Freezer Temperature | 140 - 180°F / 60 - 82.2°C |
| Product Type | Roll-Thru Holding Cabinet |
