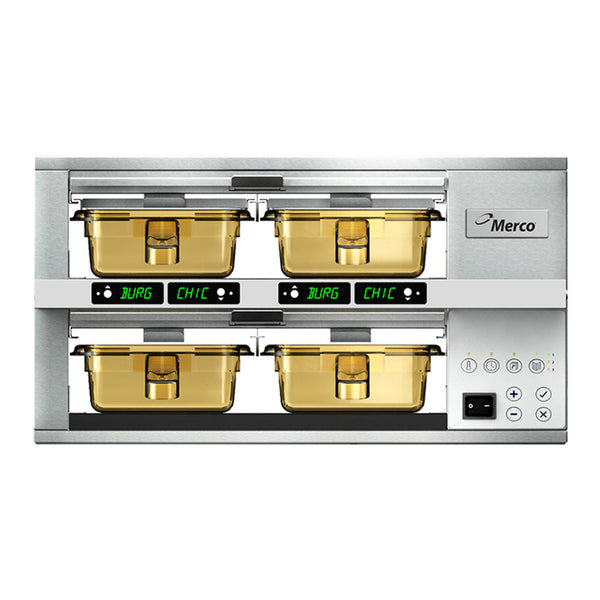

Garland MercoMax Holding Cabinets

Innovative Airflow technology with climate controlled cabinet
DuoHeat technology
The perfect combination of convection & radiant heat
Designed to hold both crispy and juicy foodsEZ clip air diffuser plates
Easy to install, remove and clean
Zone/shelf independent temperature management
Easy to clean flush mount timer bars (on some models)
Digital display for each bin (on some models)
USB programmability
All stainless steel construction and professional grade components
Cool Touch exterior
Carecode enabled
Easy online access to operations, training, service, parts & more
Warranty: 1 year parts and labor

2x2 Single Sided w/NO Timers – MHG22SAN1N
W x D x H	19 3/8" x 13" x 11 7/8" 49.2cm x 33cm x 30.2cm
Weight	50 lb 22.7 kg
Power Output	16.00 Amps
Primary Power Input	115-120 V x 60 Hz x 1 PH
Certifications	CUL, UL

2x2 Double Sided w/Timers Bars – MHG22SAB2N
W x D x H	19 1/2" x 18" x 11 9/32" 49.5cm x 45.7cm x 28.7cm
Weight	50 lb > 22.7 kg
Power Output	16.00 Amps
Primary Power Input	115-120 V x 60 Hz x 1 PH
Certifications	CUL, UL

2x2 Single Sided w/NO Timers – MHG22SAN1N
W x D x H	19 3/8 " x 13" x 11 7/8" 49.2cm x 33cm x 30.2cm
Weight	50 lb 22.7 kg
Power Output	16.00 Amps
Certifications	CUL,UL

2x2 Single Sided w/Timer Bars – MHG22SAB1N
W x D x H	19 13/64" x 15 1/2" x 11 13/32" 48.8cm x 39.4cm x 29cm
Weight	50 lb 22.7 kg
Power Output	16.00 Amps
Certifications	CUL,UL

2x3 Single Sided w/Timer Bars – MHG23SAB1N

W x D x H	29 9/64 " x 15 1/2 " x 11 9/32" 74cm x 39.4cm x 28.7cm
Weight	65 lb 29.5 kg
Power Output	13.80 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

2x3 Double Sided w/Timer Bars – MHG23SAB2N
W x D x H	29 9/64 " x 18" x 11 9/32" 74cm x 45.7cm x 28.7cm
Weight	65 lb 29.5 kg
Power Output	13.80 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL, UL

2x4 Single Sided w/NO Timer – MHG24SAB1N
W x D x H	36 1/2" x 15 1/2" x 11 13/32" 92.7cm x 39.4cm x 29cm
Weight	115 lb 52.2 kg
Power Output	16.00 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

2x4 Single Sided w/Timer Bars – MHG24SAB2N
W x D x H	36 1/2" x 15 1/2" x 11 13/32" 92.7cm x 39.4cm x 29cm
Weight	115 lb 52.2 kg
Power Output	16.00 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

3x2 Single Sided w/Timer Bars – MHG32SAB1N
W x D x H	19 1/2" x 15 1/2" x 11 9/32" 49.5cm x 39.4cm x 28.7cm
Weight	65 lb 29.5 kg
Power Output	N/A
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

3x2 Double Sided w/Timer Bars – MHG32SAB2N
W x D x H	19 1/2" x 16 9/32" x 18" 49.5cm x 41.4cm x 45.7cm
Weight	65 lb 29.5 kg
Power Output	13.80 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

3x4 Single Sided w/Timer Bars – MHG34SAB1N
W x D x H	36 1/2" x 15 1/2" x 16 9/32 92.7cm x 39.4cm x 41.4cm
Weight	150 lb 68 kg
Power Output	15.00 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

3x4 Double Sided w/Timer Bars – MHG34SAB2N
W x D x H	29 45/64 " x 18" x 11 13/32" 75.4cm x 45.7cm x 29cm
Weight	65 lb 29.5 kg
Power Output	13.80 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

4x2 Single Sided w/Timer Bars – MHG42SAB1N
W x D x H	19 1/2" x 15 1/2" x 21 5/16" 49.5cm x 39.4cm x 54.1cm
Weight	115 lb 52.2 kg
Power Output	N/A
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL

4x2 Double Sided w/Timer Bars – MHG42SAB2N
W x D x H	19 1/2" x 18" x 11 9/32" 49.5cm x 45.7cm x 28.7cm
Weight	65 lb 29.5 kg
Power Output	13.80 Amps
Primary Power Input	208-230 V x 60 Hz x 1 PH
Certifications	CUL UL
