FEATURES:

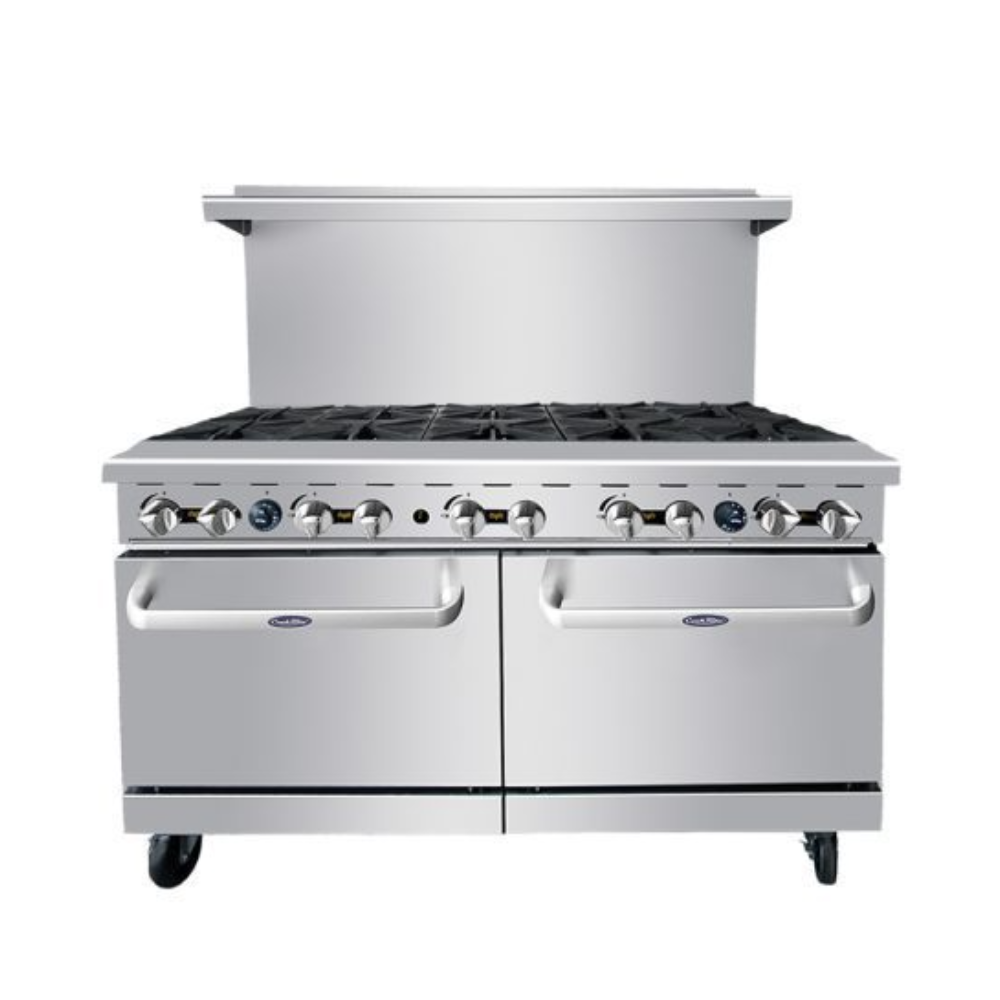

- Stainless steel exterior including front, back sides, kick plate, back guard, and over shelf
- Heavy duty 12’’ X 12’’ removable, cast iron top grates
- Drip tray is provided under the burners to catch grease drippings
- 32,000 BTU top burners & 27,000 BTU oven burners
- Oven temperature range between 175°F to 550°F
- Standing pilot for open top burners
- Oven pilot with 100% safety shut off
- Enamel interior oven for easy cleaning
- Multiple-position oven rack guides
- Two(2) chrome oven racks per oven standard
- 3/4’’ NPT rear gas connection and regulator
- Four (4) casters standard
- Available in Natural and Propane
- Leg kit part #: 301110006
- AGR-4B/AGR-8B extra oven rack part #: 301100013
- AGR-6B/AGR-10B extra oven rack part #: 301100012
| SPECIFICATIONS | ||
|---|---|---|
| Model | AGR-4B | |
| Valve Types | Pilot Light | |
| Gas Type | NG & LP | |
| Hot Plates Burner (Total BTU/h) | NG | 320,000 |
| LP | 320,000 | |
| Oven Burner (Total BTU/h) | NG | 54,000 |
| LP | 54,000 | |
| Hot Plates Number of Burners | NG | 10 |
| LP | 10 | |
| Oven Number of Burners | NG | 2 |
| LP | 2 | |
| Oven (inch) | 26 1/2 x 26 x 14 | |
| Hot Plates Working Area(inch) | 10pcs 11 4/5 x 11 4/5 | |
| Exterior Dimensions (inch) | 60 x 31 x 57 3/8 | |
| Net Weight (lbs) | 732 | |
| Gross Weight (lbs) | 897 | |
