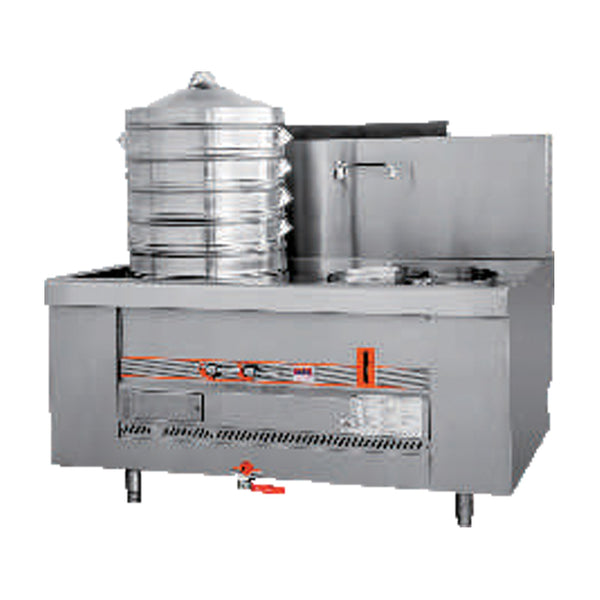

Flame-Mate ECS-2N-N Environmental Dim Sum Steamer Double Head Natural Gas

: Flame-Mate

Highlighted Features Design for the mass production Insulated tabletop On/Off steam pull valve Flame-Mate Environmental Steamer is the most important steaming equipment in preparing Chinese Dim Sum. They...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Tags:

Highlighted Features

  • Design for the mass production
  • Insulated tabletop
  • On/Off steam pull valve
Flame-Mate Environmental Steamer is the most important steaming equipment in preparing Chinese Dim Sum. They integrate the patented Insulated Flue Tube Heat Exchanger and unique fire jet burners design to improve the thermal efficiency and eliminate heat loss. Blower is not required to achieve the quite working environment. All the steamers are equipped with flame failure devices, overheat protection and water level detection devices to ensure the quality and safety of the equipment.
  • 1. Swivel faucet for cleaning purpose
  • 2. Steam control valve for energy saving purpose
  • 3. Ignition system protected by S/S splasher
  • 4. Drainage valve for preventing limescale formation
  • 5. Removable water drainage for hygiene
  • 6. Water level observation window
  • 7. 3 levels of power setting: Save energy

Environmental Features

  • Save 25% of gas consumption
  • Insulated design for efficiency
  • Operational noise level below 65dB(A)
  • Low CO emission(<0.05%)

Safety Features

  • Electronic ignition
  • Water level detection, overheat protection and flame failure devices
  • Reduce emission of CO and NOx during operation
  • Pressure release

Specifications

Model ECS-2N-N
Type Double Head Steamer
Dimension - Inch
- mm
59.1 W x 41.3 D x (31.9+17.3)H
1500 W x 1050 D x (810+440)H
Fuel Natural Gas, DN20
Water Inlet/Drainage DN15 / DN40
Burner Rating(BTU/h) 200,000
Capacity Can steam 140 baskets of dimsum at maximum per time
Net Weight / Gross Weight (kg) 200 / 250
