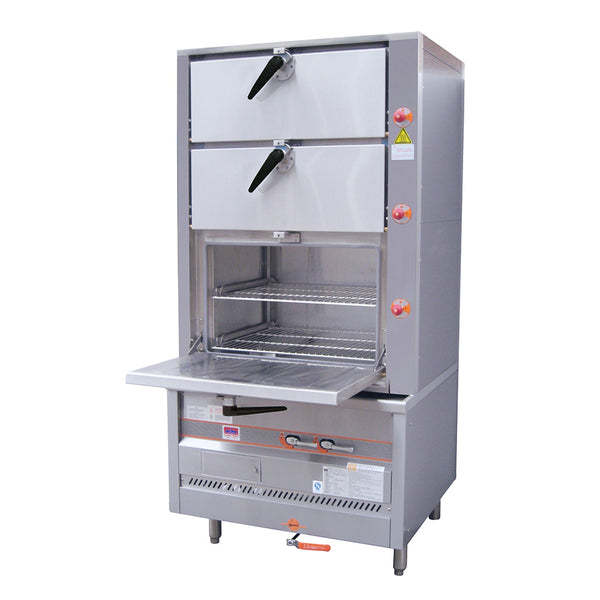

Flame-Mate ESC-3N-N Environmental Steam Cabinet Triple Decks, Natural Gas

: Flame-Mate

Regular price $0.00 Sale

Highlighted Features 2 chambers for versatile cooking Chamber dimension: 655 x 600 x 220mm x 2 nos 655 x 600 x 400mm x 1 nos Capacity : 4...

contact us
$0.00

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Tags:

Highlighted Features

  • 2 chambers for versatile cooking
  • Chamber dimension:
    655 x 600 x 220mm x 2 nos
    655 x 600 x 400mm x 1 nos
  • Capacity : 4 layers of shelvings
  • Equipped with steam On/Off valve for energy saving
Flame-Mate Environmental Steamer Cabinet applies the same steam generating principle as Flame-Mate steamer. The difference is on the design of the upper body of the cabinet, which is suitable for steaming various kind of dishes. Each type of steam cabinet is specially designed to steam different types of food to provide the best outcome.
  • 1. 2 steps rotary lock for a secure shut to ensure no leakage
  • 2. 3 levels of power setting - Adjust according to needs
  • 3. Ignition system protected by S/S splasher
  • 4. Slanted top design to prevent dripping of condensation
  • 5. Pull out shelving design with latch system
  • 6. Plug-in door gasket for easy replacement
  • 7. Drainage valve for preventing limescale formation
  • 8. Adjustable rail for shelving with latch system
  • 9. Accessible water tank for easy cleaning

Environmental Features

  • Save 25% of gas consumption
  • Insulated design for efficiency
  • Operational noise level below 65dB(A)
  • Low CO emission(<0.05%)

Safety Features

  • Electronic ignition
  • Water level detection, overheat protection and flame failure devices
  • Reduce emission of CO and NOx during operation
  • Pressure release

Specifications

Model ESC-3N-N
Type Triple decks
Dimension - Inch
- mm
35.4 W x 34.6 D x 74.8 H
900 W x 880 D x 1900 H
Fuel Natural Gas, DN20
Water Inlet/Drainage DN15 / DN40
Burner Rating(BTU/h) 157,000
Capacity 4 pairs of rail rack with layer shelving
Net Weight / Gross Weight (kg) 230 / 290
