FEATURES:
- Stainless steel exterior & interior
- Welded stainless steel tank
- Heavy-duty burners with a standing flame, standby pilots
- High-quality millivolt thermostat (T-Stat) maintains select temperature automatically between 200°F – 400°F
- Oil cooling zone in the bottom of the tank captures food particles and extends oil life
- Safety valve with an automatic voltage stabilizing function
- Self-reset high temperature limiting device
- Two (2) nickel-plated baskets with coated handles standard
- Basket hanger standard
- Available in Natural & Propane gas
- 3/4’’ NPT rear gas connection and regulator
- Four (4) casters standard
- Leg kit part #: 301110006
- Fryer splash guard part #: 21101001047
- ATFS-40ES & ATFS-50ES Fryer cover #: 21201001019
- ATFS-75ES Fryer cover #: 21201003015
- Joiner strip #: 21101001046
| SPECIFICATIONS | ||
|---|---|---|

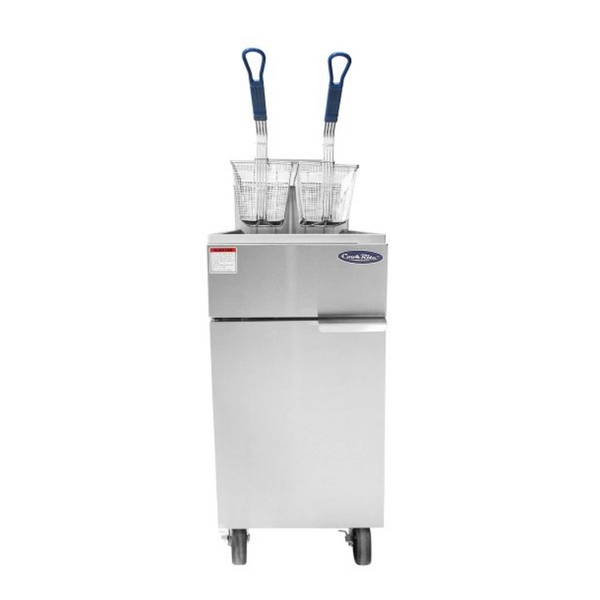

| Model | ATFS-40ES | |
| Burners and Control Method | 3 Burners, Independent Manual Control | |
| Gas Type | NG & LP | |
| Intake-tube Pressure (in.W.C.) | NG | 4 |
| LP | 10 | |
| Per BTU B.T.U./h | NG | 22,000 |
| LP | 20,000 | |
| Total BTU B.T.U./h | NG | 66,000 |
| LP | 60,000 | |
| Regulator | NG | 4" w.c. |
| LP | 10" w.c. | |
| Basket Dimensions (inch) | 13 3/10 × 6 1/2 × 5 9/10 | |
| Exterior Dimensions (inch) | 15 1/2 × 30 1/8 × 44 1/4 | |
| Net Weight (lbs) | 133 | |
| Gross Weight (lbs) | 160 | |
