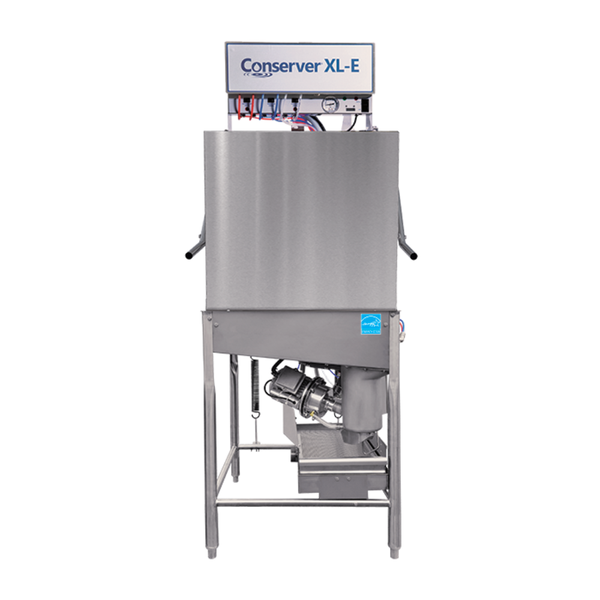

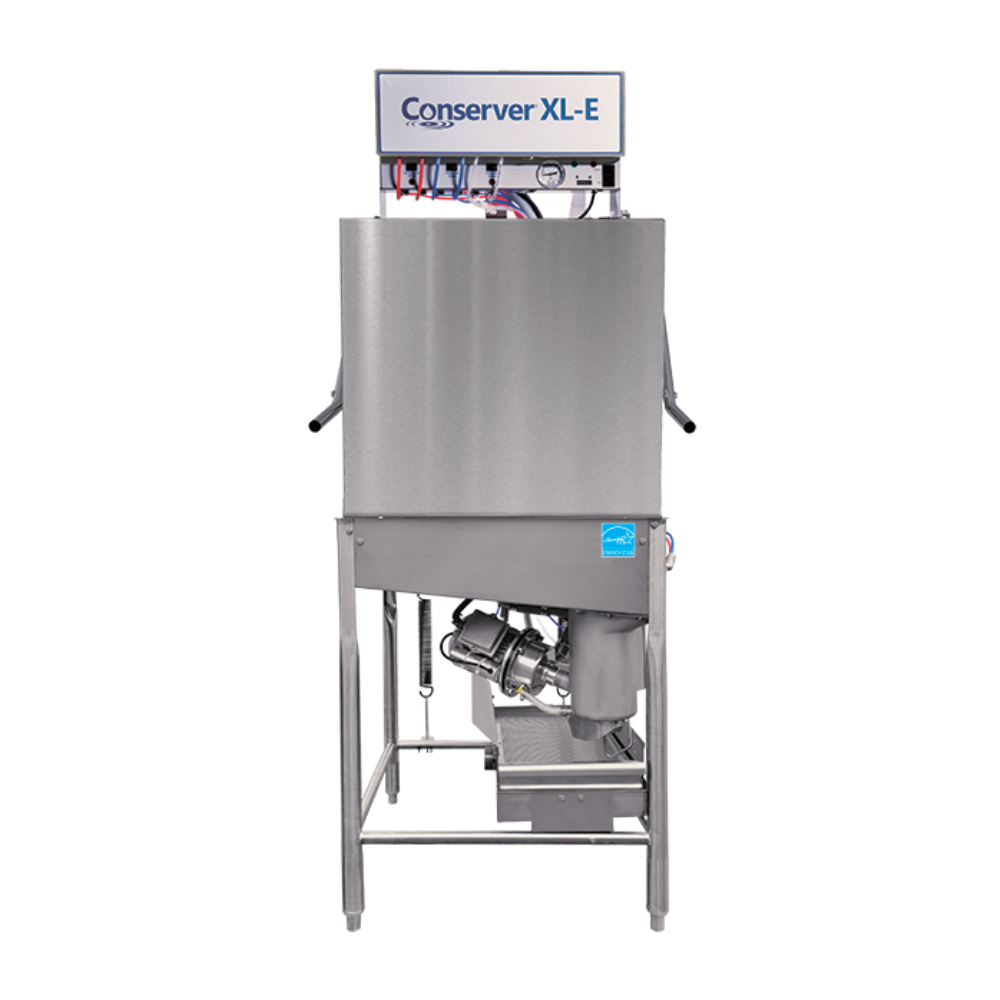

The Conserver XL-E is constructed of durable stainless steel and cleans 41 racks per hour using only 1.02 gallons of water per rack in each cycle. With field convertibility from straight-through to corner, built-in chemical pumps and priming switches, a low product indicator light, and a stainless steel self-draining pump, the Conserver XL-E dishmachine is a robust workhorse ready to meet your needs.
FEATURES:
*** Racks per hour calculated with NSF suggested load time of five (5) seconds for door-type (straight thru)
| PHYSICAL DATA | |
|---|---|
| Model | Conserver XL-E |
| OPERATING CAPACITY | |
| Racks Per Hour | 41 (39*) |
| Dishes Per Hour | 1025 |
| Glasses Per Hour | 1476 |
| OPERATING TEMPERATURE | |
| Wash Temp. (Min) | 120 °F (49 °C) |
| Wash Temp. (Recommended) | 140 °F (60 °C) |
| Rinse Temp. (Min) | 120 °F (49 °C) |
| Rinse Temp. (Recommended) | 140 °F (60 °C) |
| WATER CONSUMPTION | |
| Gallons Per Rack | 1.02 (3.9 L) |
| Gallons Per Hour | 41.82 (158.3 L) |
| Gallons Per Hour*** | 39.78 (150.6 L) |
| Wash Tank Capacity (gallons) | 1.02 (3.9 L) |
| WATER REQUIREMENTS | |
| Incoming Water Temperature (Min.) | 120 °F (49 °C) |
| Incoming Water Temperature (Rec.) | 140 °F (60 °C) |
| Flow Pressure (PSI) | 20 ± 5 |
| Incoming Water Connection (NPT) | 1/2” |
| Drain Connection (NPT) | 2” |
| ELECTRICAL | |
| Wash Pump Motor | 1 HP |
| Voltage | 115/60/1 |
| Total Load | 10.0 A |
| Minimum Circuit Ampacity | 12.5 A |
| Maximum Overcurrent Protection | 20.0 A |
| ELECTRICAL | |
| Wash Pump Motor | 1 HP |
| Voltage | 230/60/1 |
| Total Load | 5.0 A |
| Minimum Circuit Ampacity | 6.3.5 A |
| Maximum Overcurrent Protection | 15.0 A |
| DIMENSIONS | |
| Unit Dimensions (WxDxH) | 30 3/8" x 29 1/2" x 68 1/2" |
| Height with Door Open | 78" |
| Weight | 202 lbs |
| Shipping Dimension (WxDxH) | 33"x42"x73" |
| Shipping Weight | 227 lbs |
