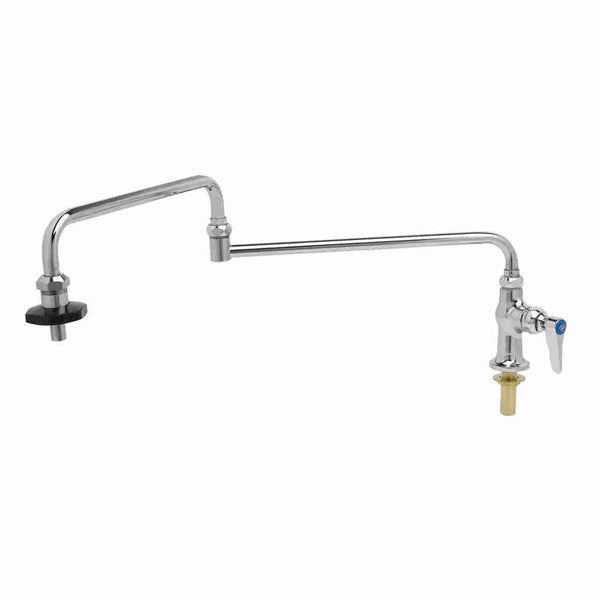

Single hole single temperature deck mount faucet with polished chrome plated brass body, 24" double joint swing nozzle, on-off volume control outlet with insulated grip, compression cartridge with spring check, lever handle, and 1/2" NPSM male inlet.
1/2" NPSM male inlet.
24" double joint swing nozzle.
Lever handle w/color-coded index.
Lock washer provided for rigid application.
Material: Polished chrome-plated brass body & tubular spout and chrome-plated metal handles.
On-off volume control outlet with insulated grip.
Quarter-turn Eterna compression cartridge w/ spring check.
Single hole single temperature deck mount pot filler faucet.
Tailpiece and nut to provide 1/4" NPT male connection.
1/2" NPSM male inlet.
24" double joint swing nozzle.
Lever handle w/color-coded index.
Lock washer provided for rigid application.
Material: Polished chrome-plated brass body & tubular spout and chrome-plated metal handles.
On-off volume control outlet with insulated grip.
Quarter-turn Eterna compression cartridge w/ spring check.
Single hole single temperature deck mount pot filler faucet.
Tailpiece and nut to provide 1/4" NPT male connection.
| Specifications | |
| Nozzle Flow | 5.23 GPM (19.80 L/min) |
| Pressure Max | 125 psi (8.62 bar) |
| Pressure Min | 20 psi (1.38 bar) |
| Temperature Max | 140 F (60℃) |
| Temperature Min | 40 F (4.44℃) |
| Body | Single Hole |
| Body | Single Temp |
| Body Mount | Deck |
| Cartridge-Spindle | 1/4 Turn Compression |
| Handle | Lever |
| Inlet | 1/2 in NPSM Male |
| Inlet | Optional 1/4 in NPT |
| Nozzle | 12 in |
| Nozzle | 24 in |
| Nozzle | Double Joint |
| Nozzle | Nozzle |
| Nozzle | Swivel |
| Nozzle Outlet Type | Heat Resistant |
| Nozzle Outlet Type | On-Off Volume Control |
